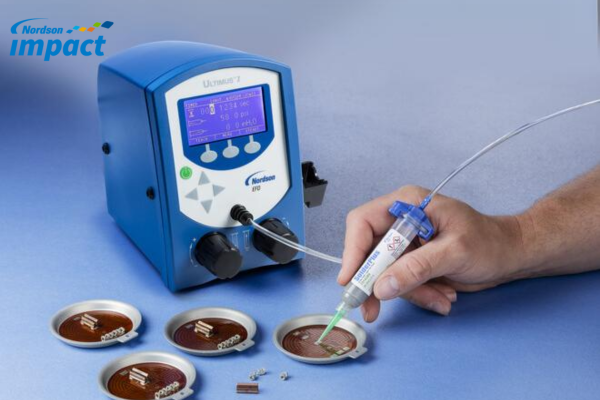

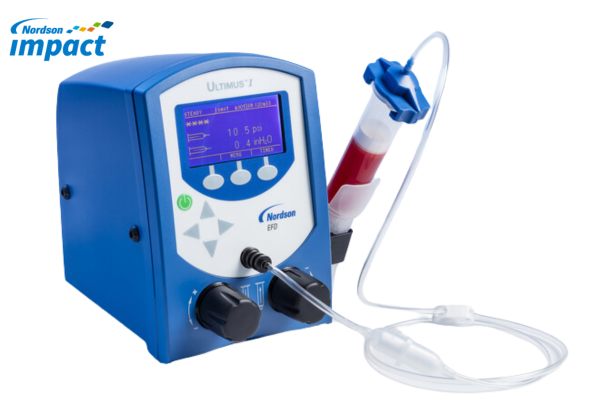

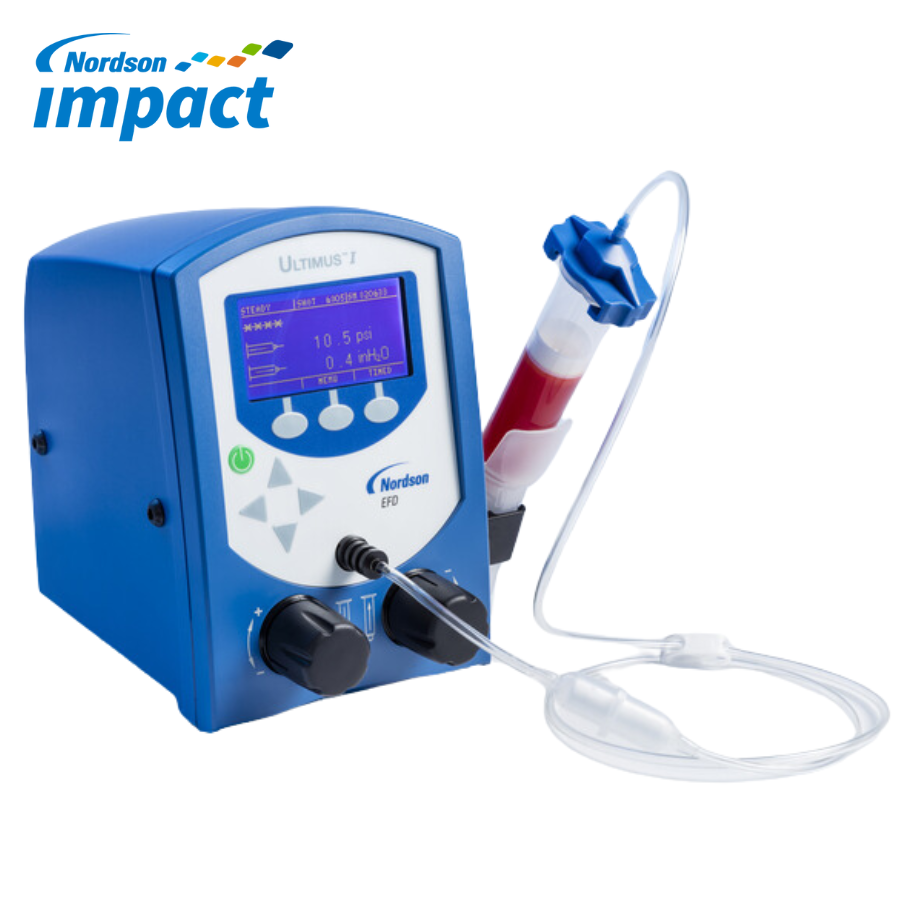

Máy bơm keo chính xác Nordson Ultimus I-II

Thương hiệu: Nordson

Ultimus I and II Dispensers
Part #	Description	Specification
7017041	Ultimus I dispenser	0-100 psi (0-7 bar)
7012584	Ultimus I dispenser, calibrated*	0-100 psi (0-7 bar)
7002003	Ultimus II dispenser	0-15 psi (0-1 bar)
7012586	Ultimus II dispenser, calibrated*	0-15 psi (0-1 bar)

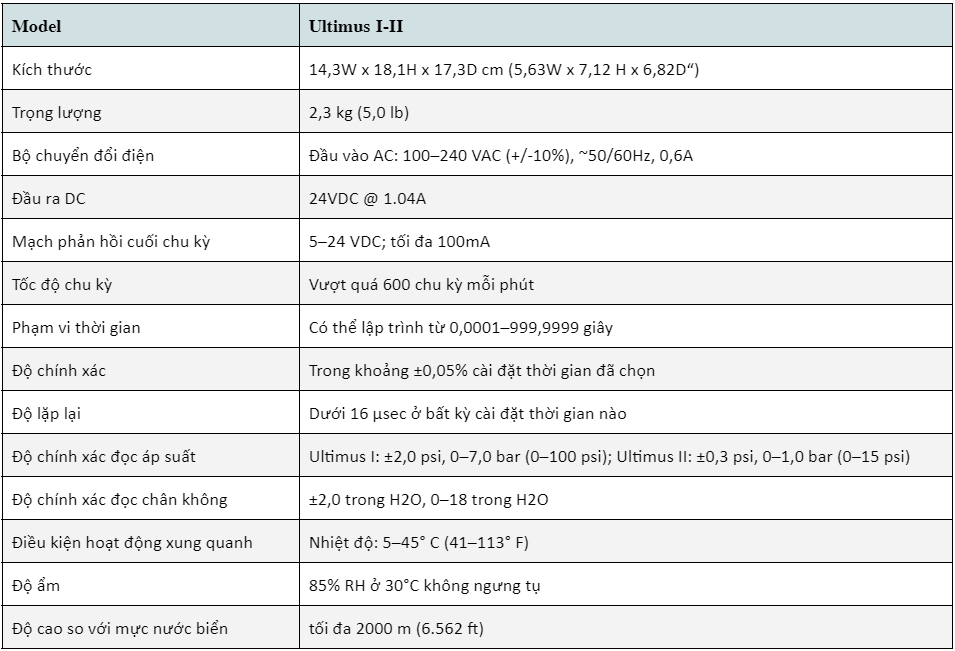

SPECIFICATION:

Cabinet Size	14.3W x 18.1H x 17.3D cm (5.63W x 7.12H x 6.82D“)
Weight	2.3 kg (5.0 lb)
Power adapter	AC input: 100–240 VAC (+/-10%), ~50/60Hz, 0.6A DC output: 24 VDC @ 1.04A
End-of-cycle feedback circuits	5–24 VDC; 100mA maximum
Initiate circuits	Foot pedal, finger switch, or 5–24 VDC signal
Cycle rate	Exceeds 600 cycles per minute
Time	Range: Programmable from 0.0001–999.9999 seconds Accuracy: Within ±0.05% of the selected time setting Repeatability: Less than 16 μsec at any time setting
Pressure readout accuracy	Ultimus I: ±2.0 psi, 0–7.0 bar (0–100 psi) Ultimus II: ±0.3 psi, 0–1.0 bar (0–15 psi)
Vacuum readout accuracy	±2.0 in H2O, 0–18 in H2O
Ambient operating conditions	Temperature: 5–45° C (41–113° F) Humidity: 85% RH at 30° C non-condensing Height above sea level: 2000 m maximum (6,562 ft)
