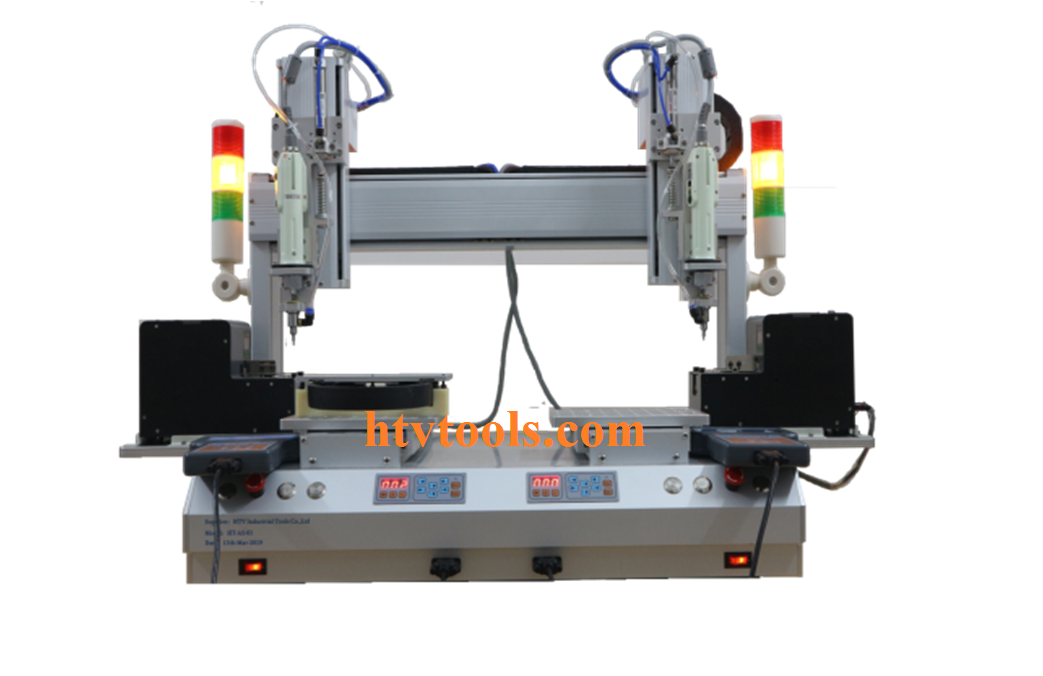

Máy vặn vít tự động HT-AS-0202-2030

                    Series name

HT-AS-0101-2030

HT-AS-0102-2030

HT-AS-0202-2030

Screwdriver, Jig

1 screwdriver , 1 Jig

1 screwdriver, 2 Jig

2 screwdriver, 2 Jig

Control number of shaft center

3 axes

Movement
range

The X, Y-axis

200*300mm

200*500mm

200*500mm

The Z-axis

80mm

80mm

80mm

Weight

The Y-axis (the work base side)

10kg

12kg

15kg

Z,W axis (the head side)

5kg

6kg

7kg

Maximum Speed

X, Y  600- 800 mm / S, Z  6 00 mm / S

Repeated precision

X,Y,Z  ±0.02mm

Torque Range

0.5~15kgf.cm (can be adjusted )

Air pressure requirement

0.4 to 0.6MPa (4 to 6kg/cm2) as dry air

Working conditions

Temperature: 10-40C°  ; Humidity: 20-90% RH

Power supply, Power consumption

                                                     AC100 - 240V 50/60Hz

Dimensions

               W

630mm

630mm

               D

650mm

730mm

               H

850mm

850mm

Weight

65kg

70kg

75kg

Optional

        Various work bases, various holders, Teaching Pendant, nozzle adjuster
